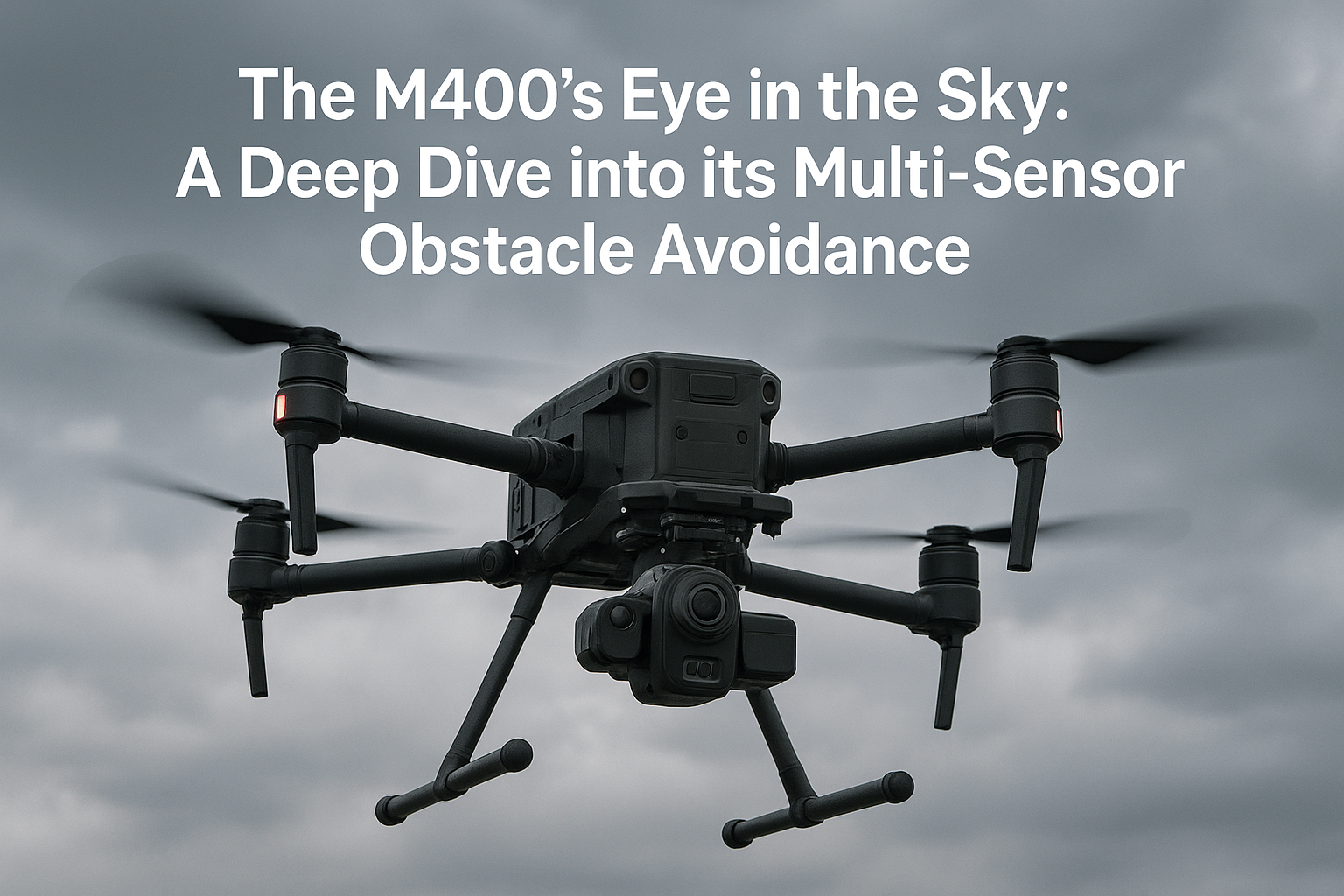

The M400's Eye in the Sky: A Deep Dive into its Multi-Sensor Obstacle Avoidance
In the world of professional drones, a collision isn't just an inconvenience; it can be a catastrophic failure with real-world consequences. This is why the DJI M400 sets a new benchmark for operational safety with its revolutionary multi-sensor obstacle avoidance system. This isn't just a single sensor doing all the work—it's a sophisticated fusion of technologies working in harmony to give the drone a complete, 360-degree awareness of its surroundings, even in the most challenging conditions.
The Three Pillars of Perception
The M400’s advanced safety suite is built on three core sensor types that complement each other's strengths and weaknesses. This redundancy is key to its reliability.
1. Rotating LiDAR
The M400 features a horizontal rotating LiDAR sensor. Unlike traditional vision sensors that rely on light, LiDAR uses a laser to measure distances by bouncing light off objects and timing how long it takes to return. This creates a detailed, 3D point cloud of the environment. The rotating nature of the sensor gives the drone a continuous, 360-degree horizontal field of view, allowing it to detect even thin, fine objects like power lines and wires. This is crucial for industries like energy inspection, where the drone must navigate dense corridors of cables. The LiDAR's performance remains stable in various lighting conditions, from bright sunlight to low light, because it's not dependent on ambient light.
2. mmWave Radar
While LiDAR is excellent for creating a detailed map, it can be impacted by airborne particles like rain, fog, and snow. This is where the six-direction mmWave radar comes in. Operating on millimeter-wave frequencies, this radar can penetrate through low-visibility conditions that would blind a camera or confuse a LiDAR sensor. It provides real-time information on an obstacle's distance and velocity, allowing the drone to make rapid, decisive course corrections. The combination of LiDAR for precise, fine-detail detection and radar for all-weather, long-range sensing creates a robust safety net.
3. Full-Color Low-Light Fisheye Sensors
Completing the trifecta are the M400's full-color low-light fisheye vision sensors. Located on all sides of the aircraft, these cameras provide real-time, visual situational awareness. They are highly effective in daylight and, crucially, can switch to a sensitive black-and-white mode in low-light environments, giving the drone an "eye in the sky" for nighttime operations. This system works in tandem with the other sensors to confirm object detection and provide a visual context to the data collected by the LiDAR and radar, significantly enhancing the pilot's awareness.
A Smarter Flight, No Matter the Conditions
The true power of the M400's system lies in its sensor fusion. The data from the LiDAR, radar, and vision sensors is constantly processed and analyzed by the drone's flight controller. This allows the M400 to autonomously detect and bypass obstacles at high speeds—it can identify main power lines (21.6 mm) at up to 25 m/s. This integrated intelligence also powers features like Smart AR Projection, which overlays the location of detected power lines directly onto the remote controller's screen, giving the pilot a clear and intuitive view of potential hazards. The M400's ability to "see" in the dark, through fog, and at a granular level redefines what's possible for safe, all-weather commercial drone operations.
