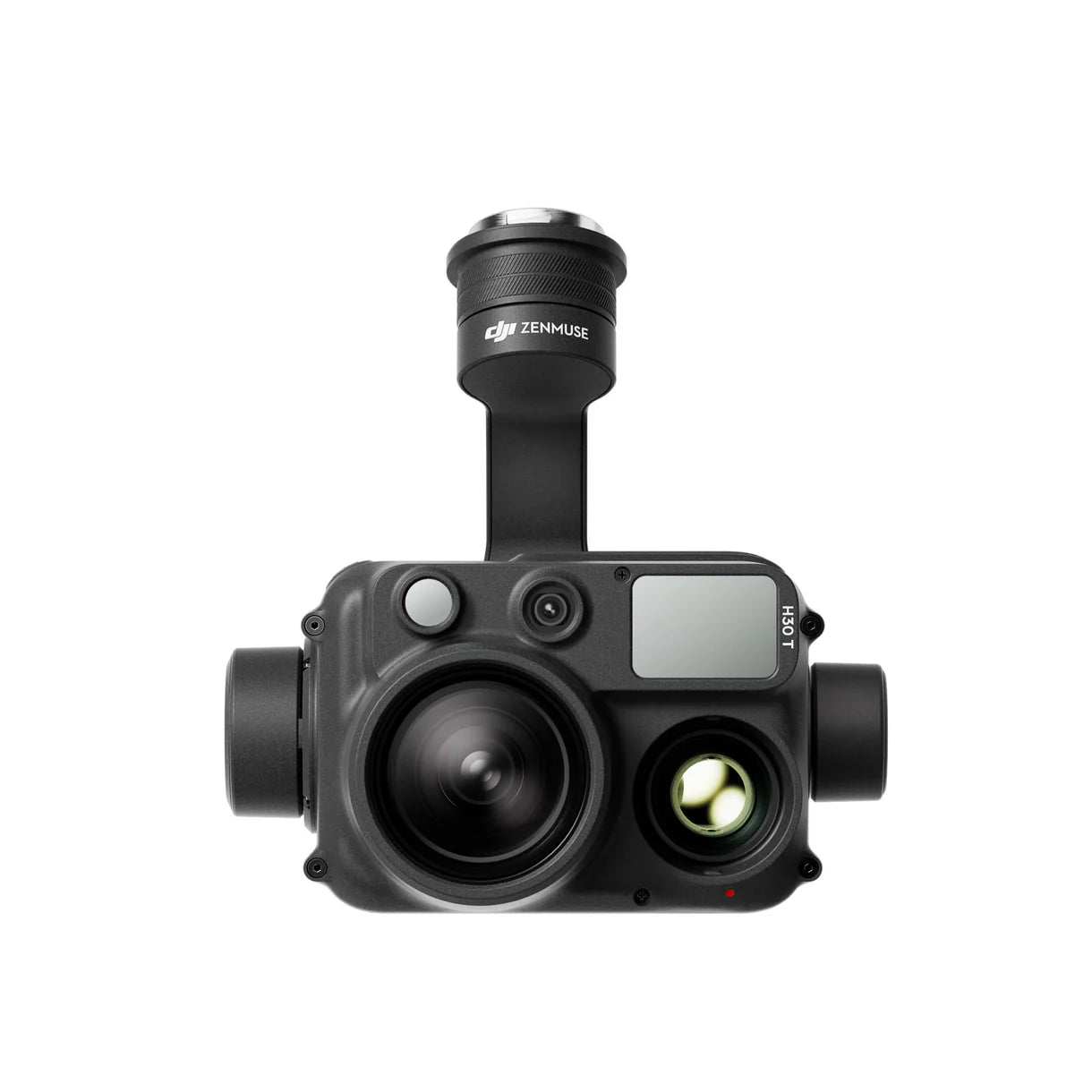

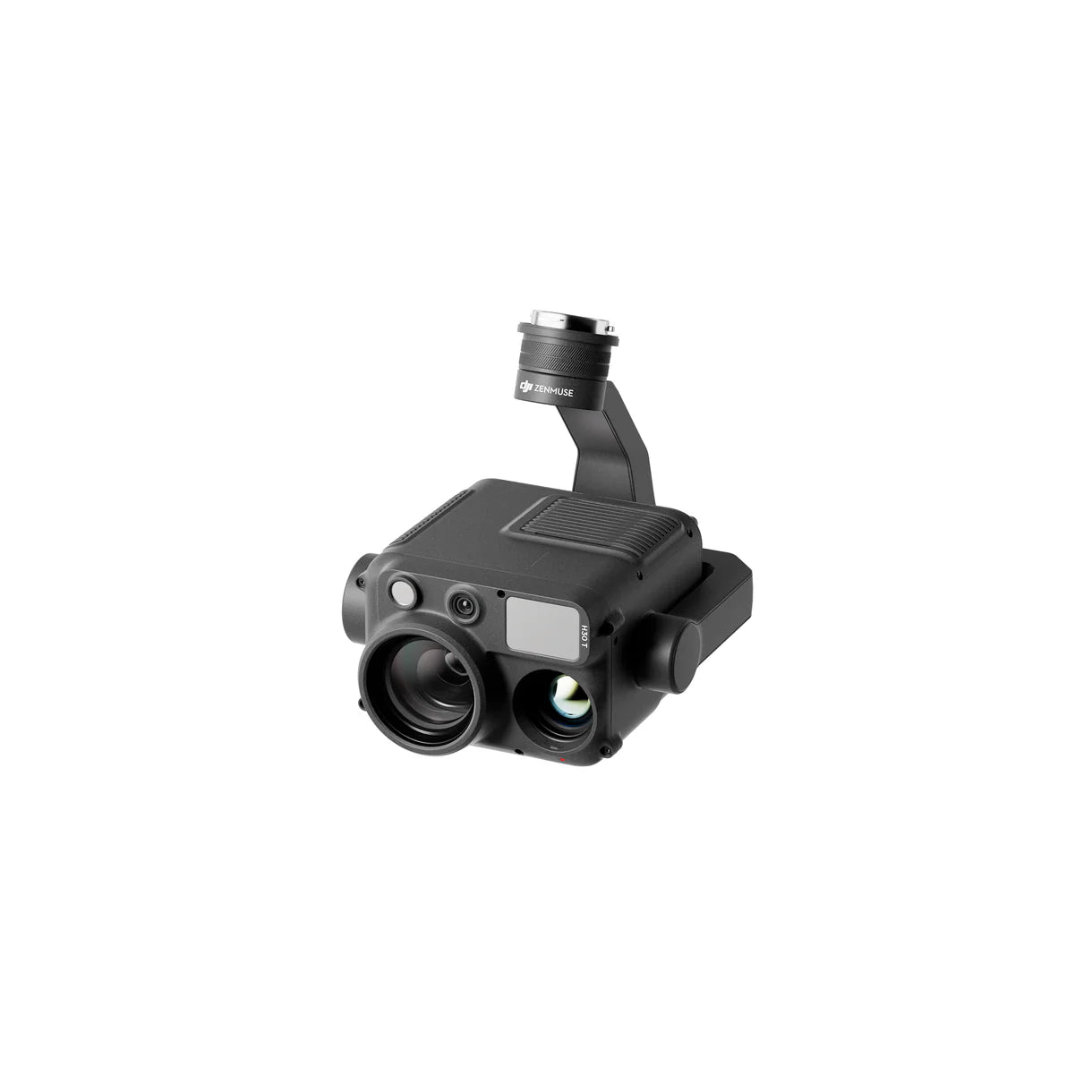

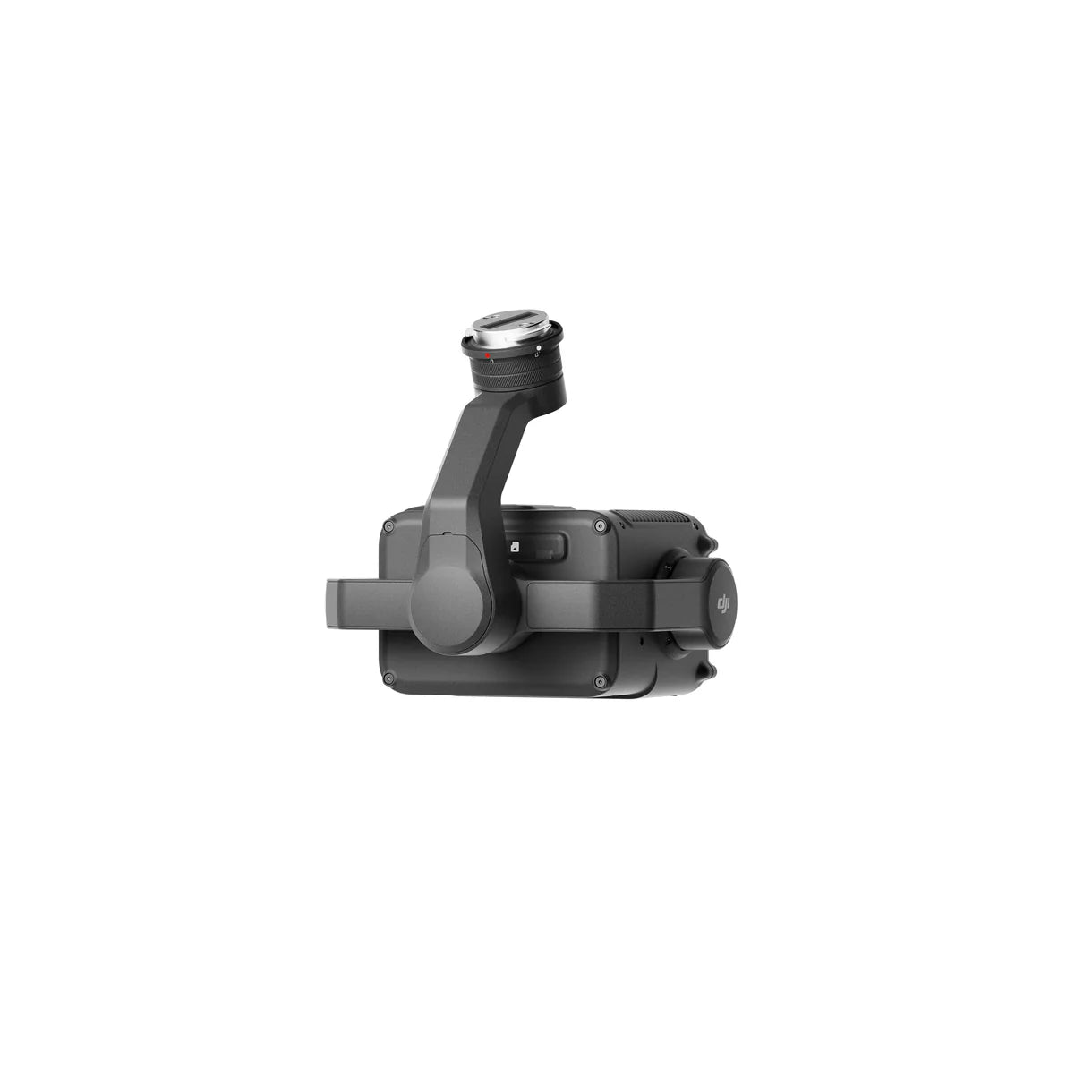

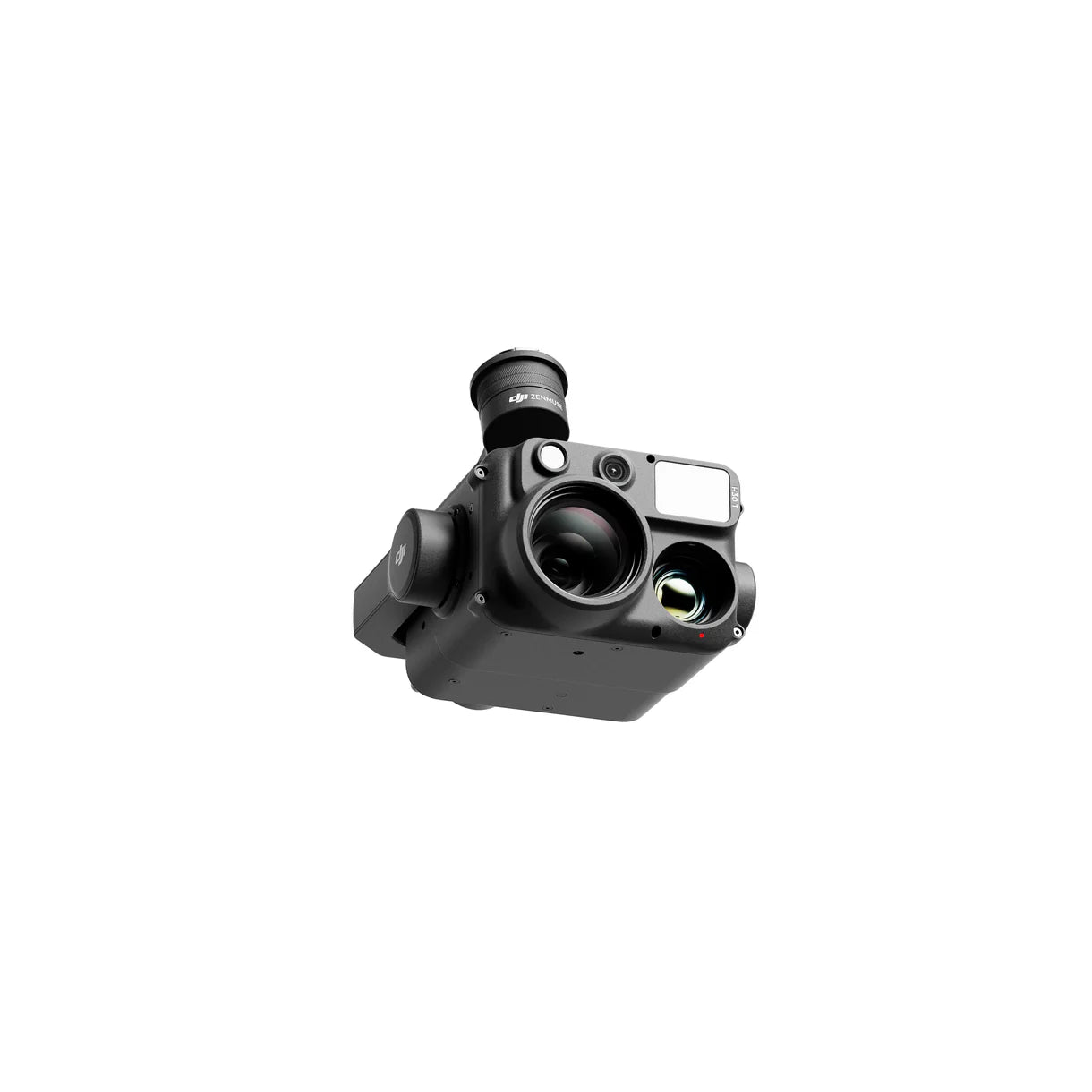

Made up of five different imaging devices, the DJI Zenmuse H30T is DJI's flagship payload for Matrice 300/350 RTK drones that's an ideal solution for many different industries and professions, such as search and rescue, infrastructure inspection, forestry, firefighting, and more. It's a multicamera system with wide-angle, zoom, and infrared thermal cameras. Plus, a laser rangefinder and NIR auxiliary light. Everything is housed and protected within an all-weather gimbal with IP54-rated dust and water resistance and an operating temperature range from -4 to 122°F. From filming stunning landscapes to assisting in public safety and other enterprise missions, the Zenmuse H30T can handle most aerial tasks you set before it.
Multicamera System
- Wide-Angle: 48MP stills with 4K30 video recording at a DFOV of 82.1°.
- Telephoto Zoom: 40MP stills with 4K30 video recording at up to 34x optical and 400x digital zoom. Image stabilization is also offered when zoomed to reduce shake for stable and clear content.
- Infrared Thermal: 1280 x 1024 resolution at 30 Hz with a temperature measurement range of -4 to 2912°F with an optional Infrared Density Filter installed. Alone, it has a range of -4 to 1112°F. It also offers up to 32x digital zoom, with an auto-activating UHR (Ultra-High Resolution) mode when zoomed in at high levels to maintain a clear image.
- Laser Rangefinder: A 10' to 1.86-mile measurement range. Capture linear distance from the gimbal, as well as the objects' altitude and GPS coordinates.
- NIR Auxiliary Light: Provides a 26' diameter circle of near-infrared light from 328' away, helping to achieve a clearer zoomed image for the wide and zoom sensors in Night Scene mode.
Night Scene Mode
Available to both wide and zoom sensors, this enhances low-light recording for more detail and clarity. It can be used in full color or in black-and-white with the NIR auxiliary light, achieving a greater contrast and more easily locating subjects.
- Gain Modes
The infrared thermal camera can use High Gain for more precise temperature measurements, Low Gain for a wider temperature range, or High-Res to better observe subjects with small temperature differences for easier identification.
- Link Zoom
The zoom feature of both the telephoto and thermal cameras can be linked, letting you not just see side-by-side images in both visible and infrared light, but also scale them simultaneously to keep the same perspective as you zoom in and out.
- Smart Capture
In this mode, the telephoto and thermal sensors automatically asses the brightness and dynamic range of ambient light, apply intelligent image algorithms, and output photos with nature transitions between light and dark, even in areas of strong and dynamic lighting.
- Electronic Dehazing
The zoom sensor can use the dehazing function at low or high levels to improve image clarity in smog or high atmospheric humidity conditions.
Pre-Recording
Supported by all of the camera sensors, the payload can retain footage from 10, 15, or 30 seconds before you formally begin recording, helping to ensure that you don't miss important moments.
- Encryption with One-Click Clearance
A security code can encrypt microSD cards with AES-256 encryption to fully protect your content. This also secures transmissions between the remote and drone and supports 1-click log clearance to prevent information leaks.
Cloud Information Sync
For collaborative ground and air operations, operators can view live footage from the drone through DJI FlightHub 2 in the cloud, helping to facilitate fast remote commands and more efficient air-to-ground operations.
- DJI Care Enterprise Plus
This protection plan offers multiple benefits when it comes to replacing and servicing the Zenmuse H30T. This specific plan provides one year of coverage with unlimited replacements for free and the DJI Care Enterprise Plus Renew extended service plan. The plan covers damage from user error, signal interference, collision, water damage, and drop damage. When submitting a replacement request, DJI will also provide free delivery. DJI also takes the hassle out of protecting your entire fleet, letting you share the coverage with all of your drones.
